It's always recommended to replace these seals whenever the Haldex Pump is removed.
We recommend changing the Haldex Fluids every 20,000 miles for the Gen 5 haldex. With this Service its recommended to remove the pump and clean the filter that is on the pump from any metal shavings. Failure to do so will accumulate clutch particles and put extra wear on the pump motor causing it to fail prematurely. That would require a new pump motors that run around $250 and need to be reset with Jaguar software. It is cheeper to just change the fluids on time.

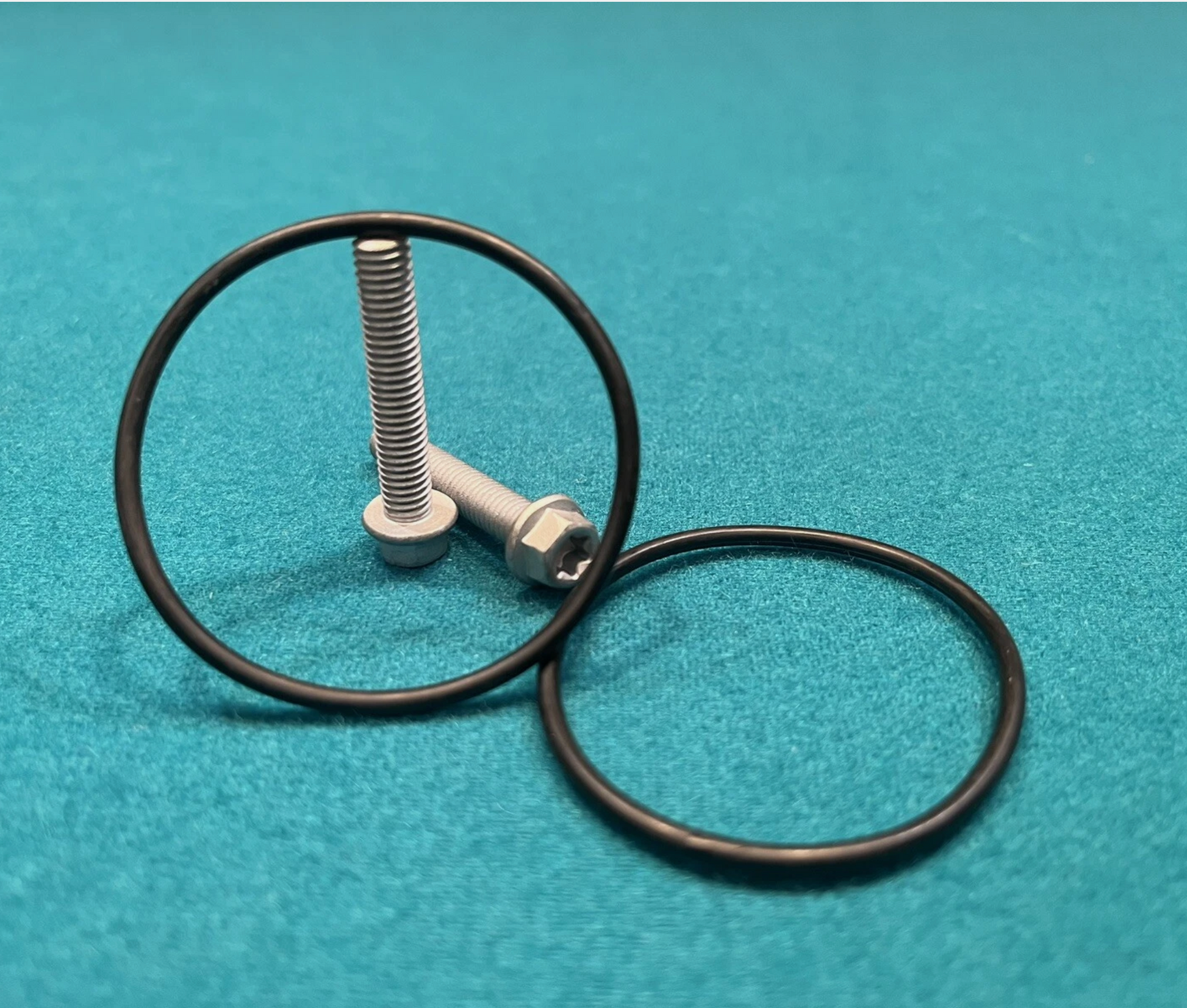

The two seals are not the same size!

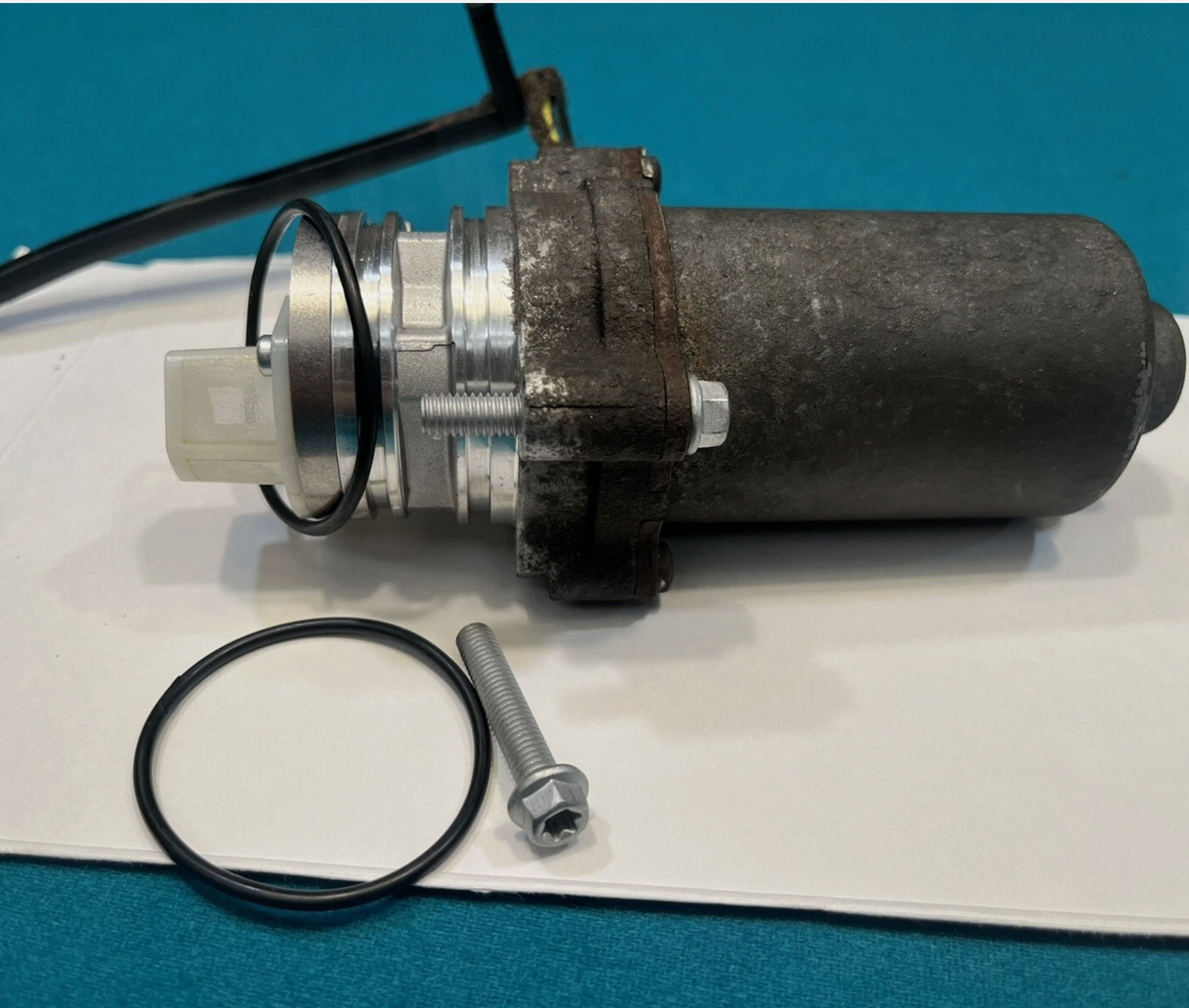

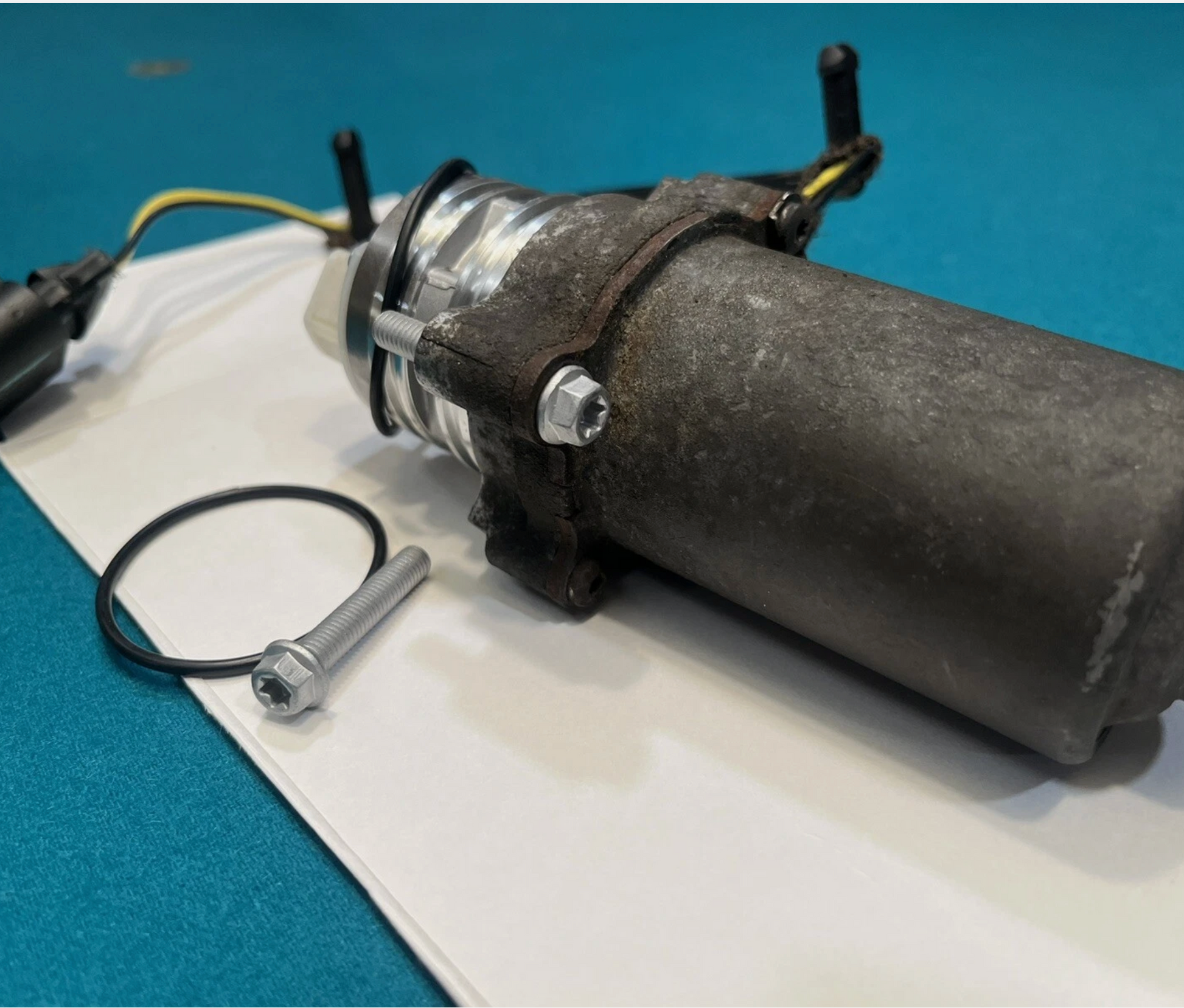

Make sure the smaller seal is positioned closest to the strainer pickup, while the larger seal is fitted nearest to the flange and motor body.

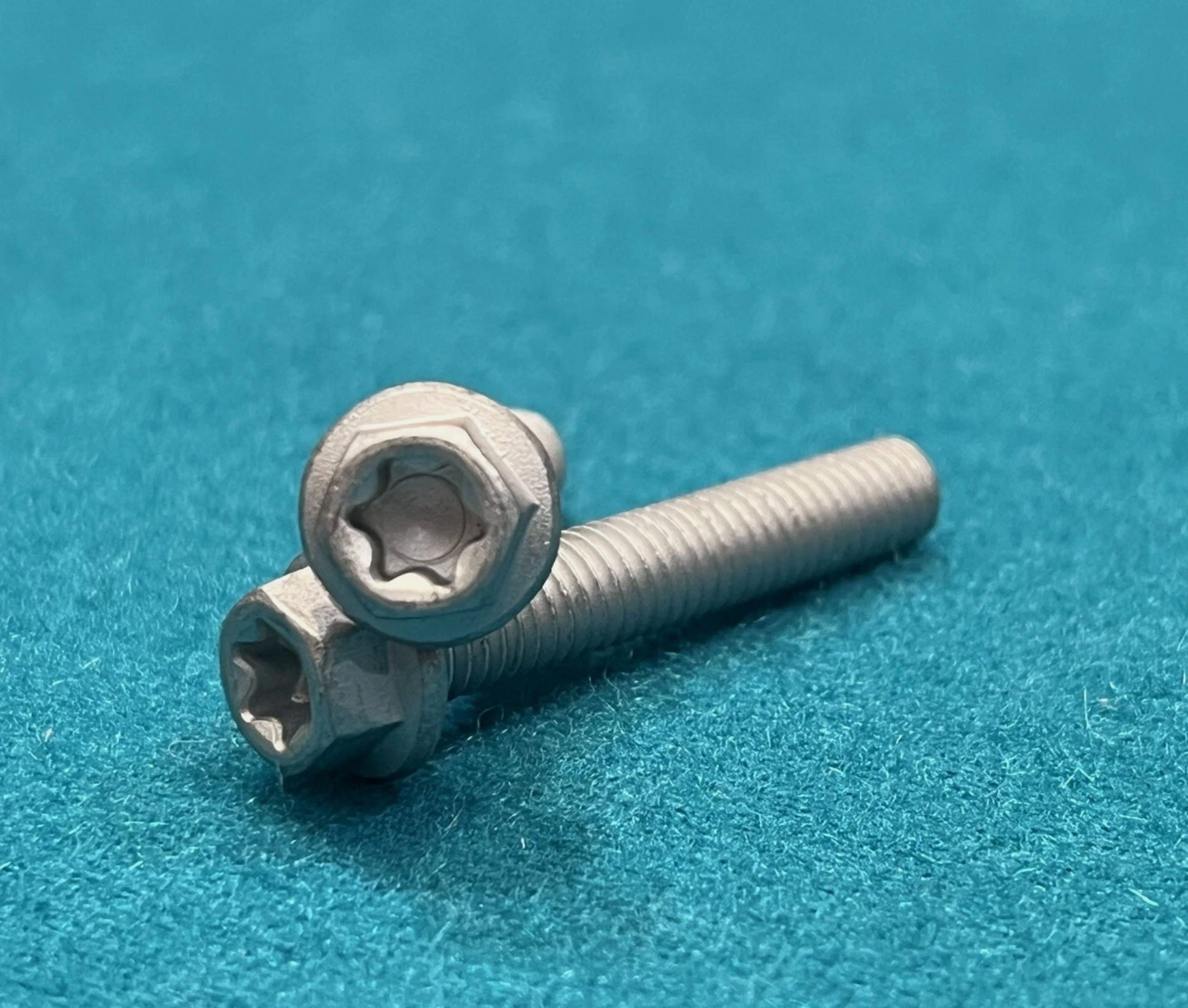

Bolts are m6 with t30 inner andr 8mm head

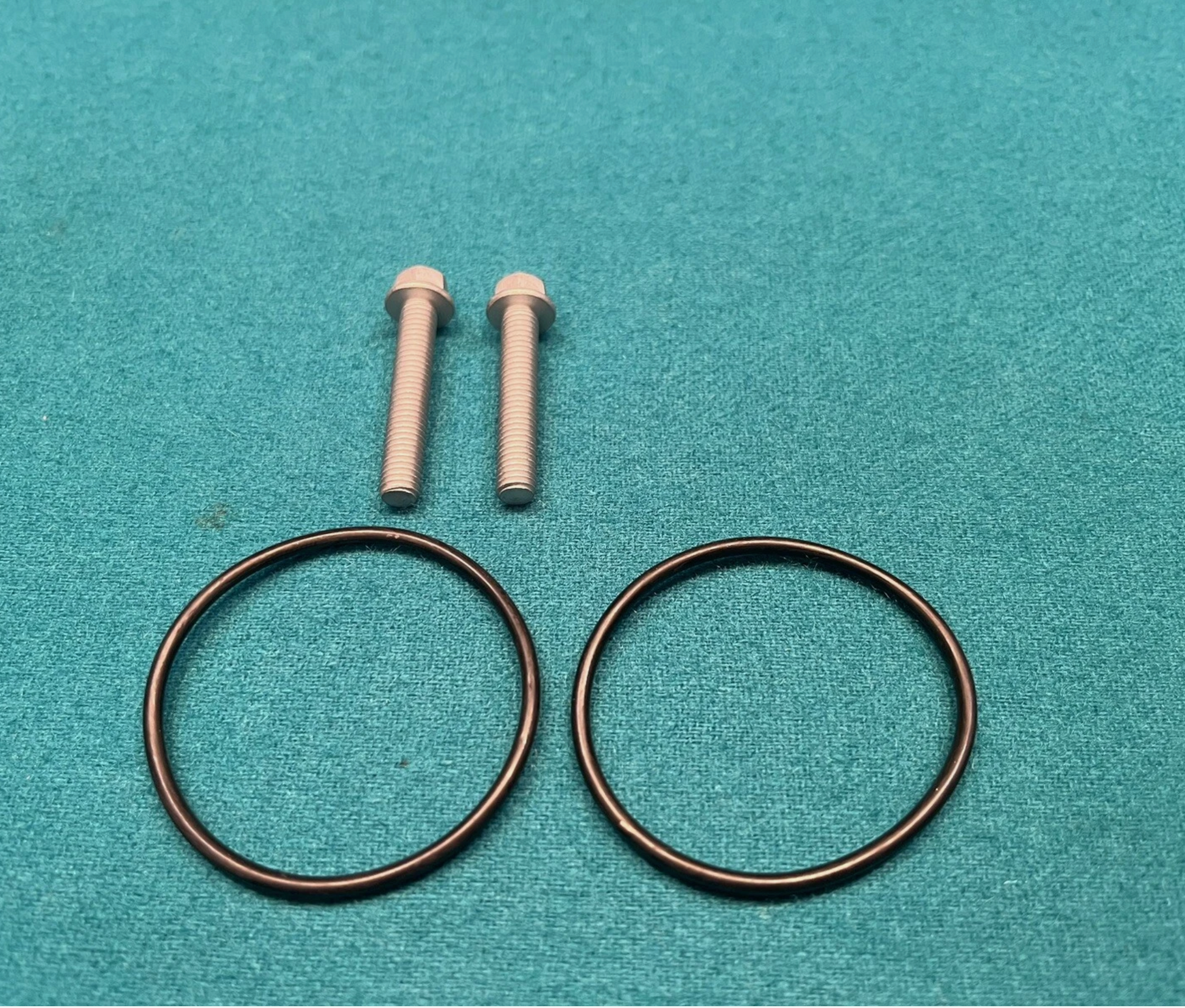

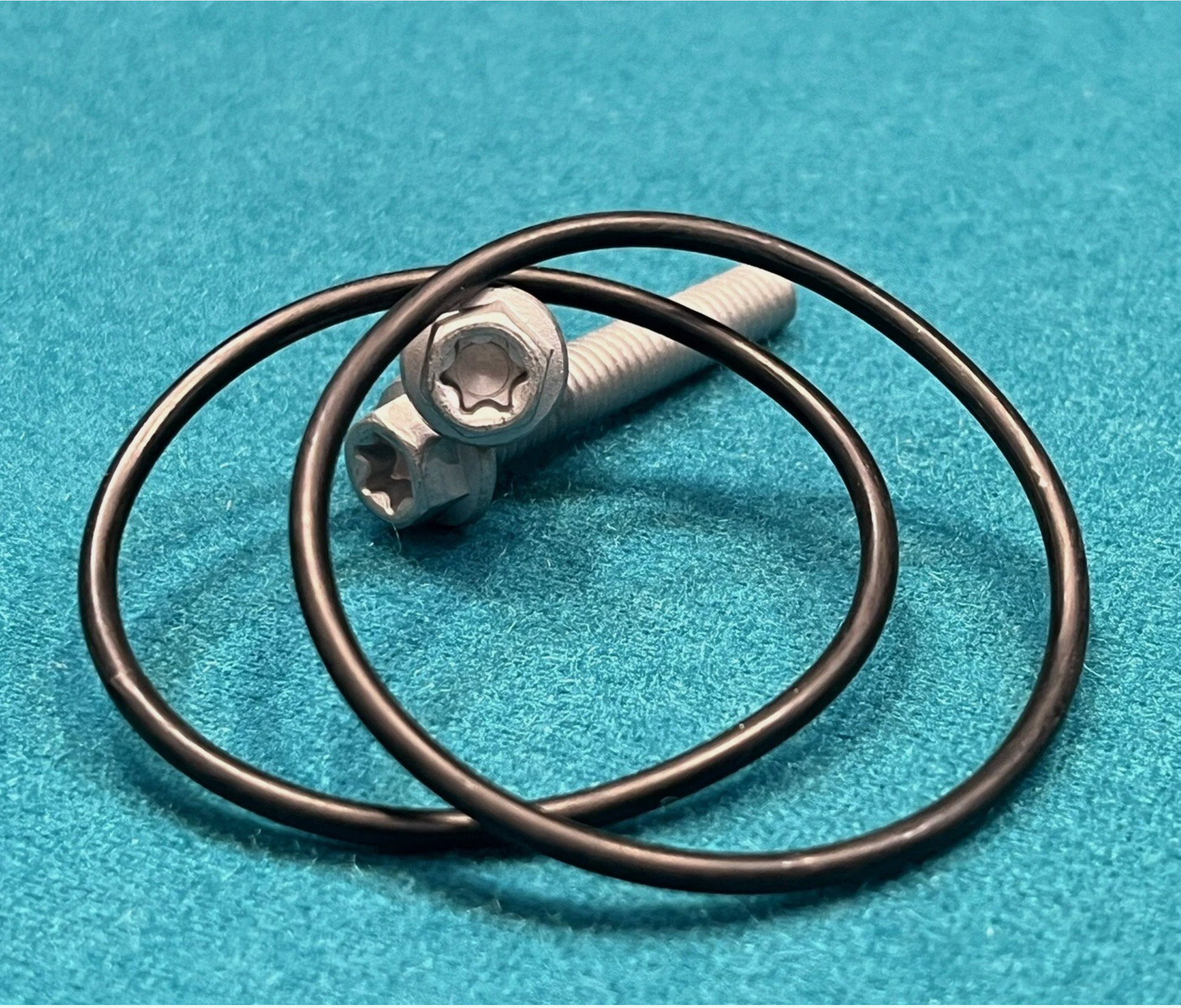

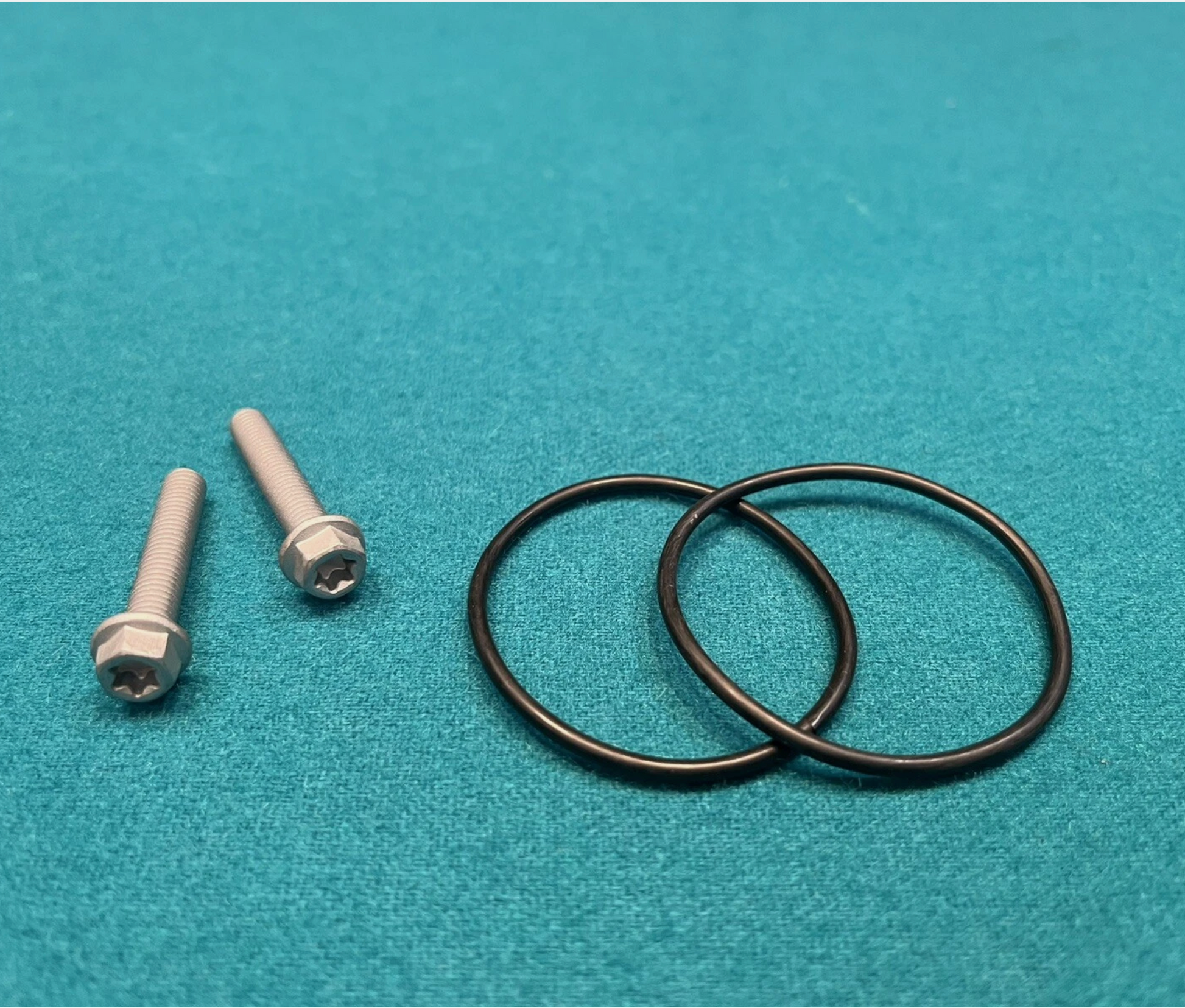

Brand new Haldex pump O-Ring02T2H20181service kit for AWD 4X4 Jaguar 5th generation Haldex system.
Part Number 02T2H20181 DS4601410015 LR093768 ( #LR093768 ) 46-01-410-015 4601410015
oil: 2000884 (alternative for G060175A2, factory replacement)
Compatible vehicles: Jaguar F-Pace X 761 (2016 - )
