2011-2016 Dodge Durango Power Steering Pump EHPS viton ORing Repair Kit 05154663

This will work on the following years and models

Dodge Durango (2014) — 3.6L V6

Dodge Durango (2015) — 3.6L V6

Below is a step-by-step guide to replacing the main O-rings on the Mopar electronic power steering pump P05154663AB Dodge Durango 3.6L 2014–2015) to stop fluid leaks.

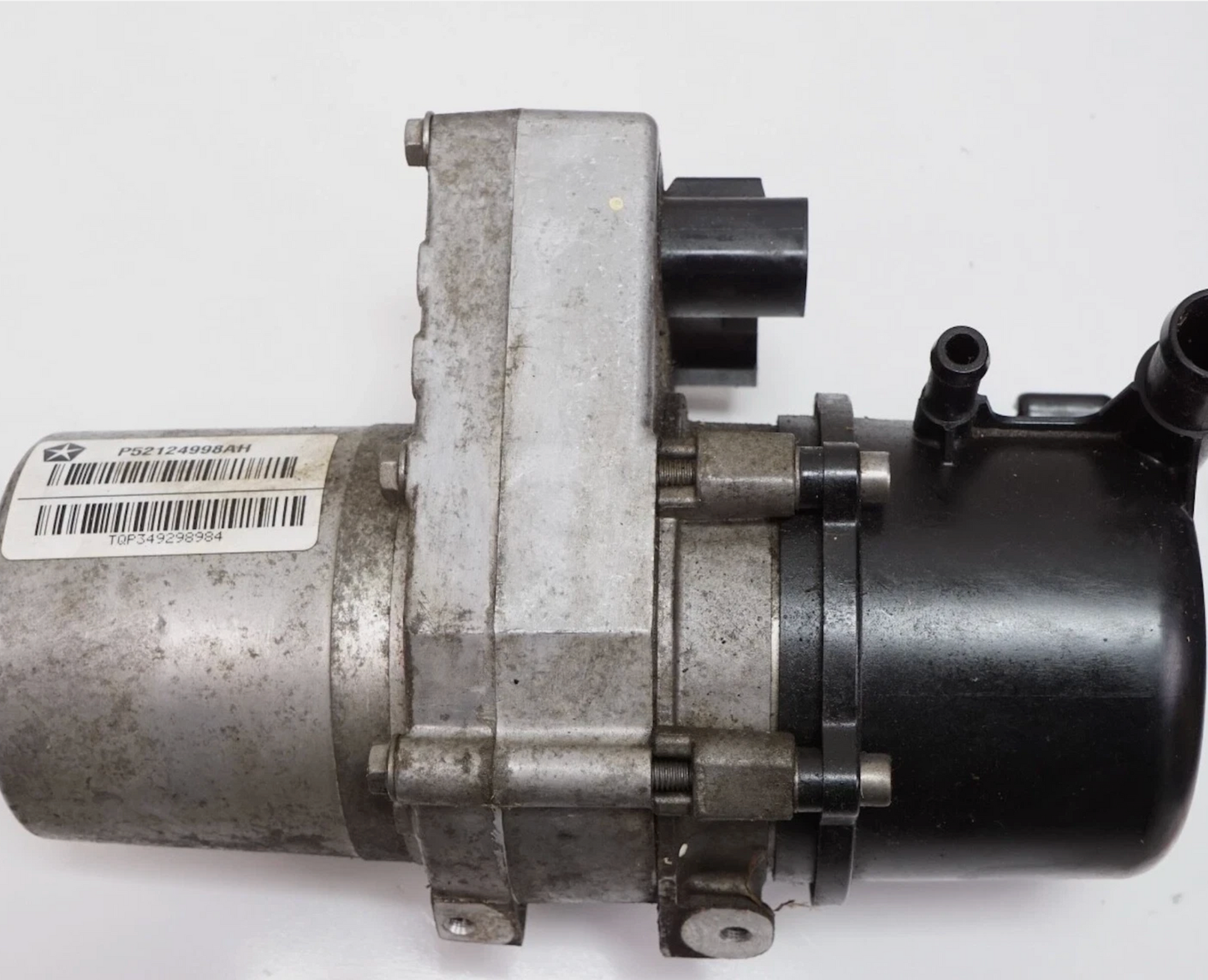

This pump is an electro-hydraulic unit (electric motor + hydraulic pump), so care is required around electronics.

⚠️ Important Before You Start

• Disconnect the battery before touching the pump.
• Power steering systems operate at very high pressure.
• Work clean — dirt inside the pump will destroy it.
• If the electric motor housing is leaking internally, rebuilding may not fix it.

Tools & Supplies Needed

• Basic metric socket set
• Torx bits (typically T25–T30)
• Snap ring pliers
• Small pick set
• Torque wrench (inch-lb preferred)
• Drain pan
• Clean lint-free rags
• Brake cleaner (non-chlorinated)
• Power steering fluid (correct spec for your vehicle)
• Replacement O-rings
• Assembly lube or clean PS fluid

Step 1 – Remove the Pump from the Vehicle

1. Disconnect the negative battery terminal.
2. Remove engine covers and intake components for access.
3. Place a drain pan underneath.
4. Disconnect:
• Pressure line
• Return line
• Electrical connector
5. Remove mounting bolts.
6. Remove the pump assembly from vehicle.

Drain remaining fluid.

Step 2 – Clean the Exterior

Before opening:

• Spray the outside with brake cleaner.
• Blow dry with compressed air.
• Keep dirt out of internal sections.

This is critical.

Step 3 – Separate the Hydraulic Pump from the Motor

1. Remove Torx bolts around the pump housing.
2. Carefully separate the hydraulic head from the electric motor.
• Do NOT pry aggressively.
• Watch for alignment dowels.

You’ll now see the pump cartridge section.

Step 4 – Disassemble the Pump Section

1. Remove rear cover plate (usually held with Torx screws).
2. Carefully lift off cover.
3. Remove:
• Cam ring
• Rotor
• Vanes
• Thrust plates

Lay them out in order. Orientation matters.

Step 5 – Replace the Main O-Rings

Common leak points on this pump:

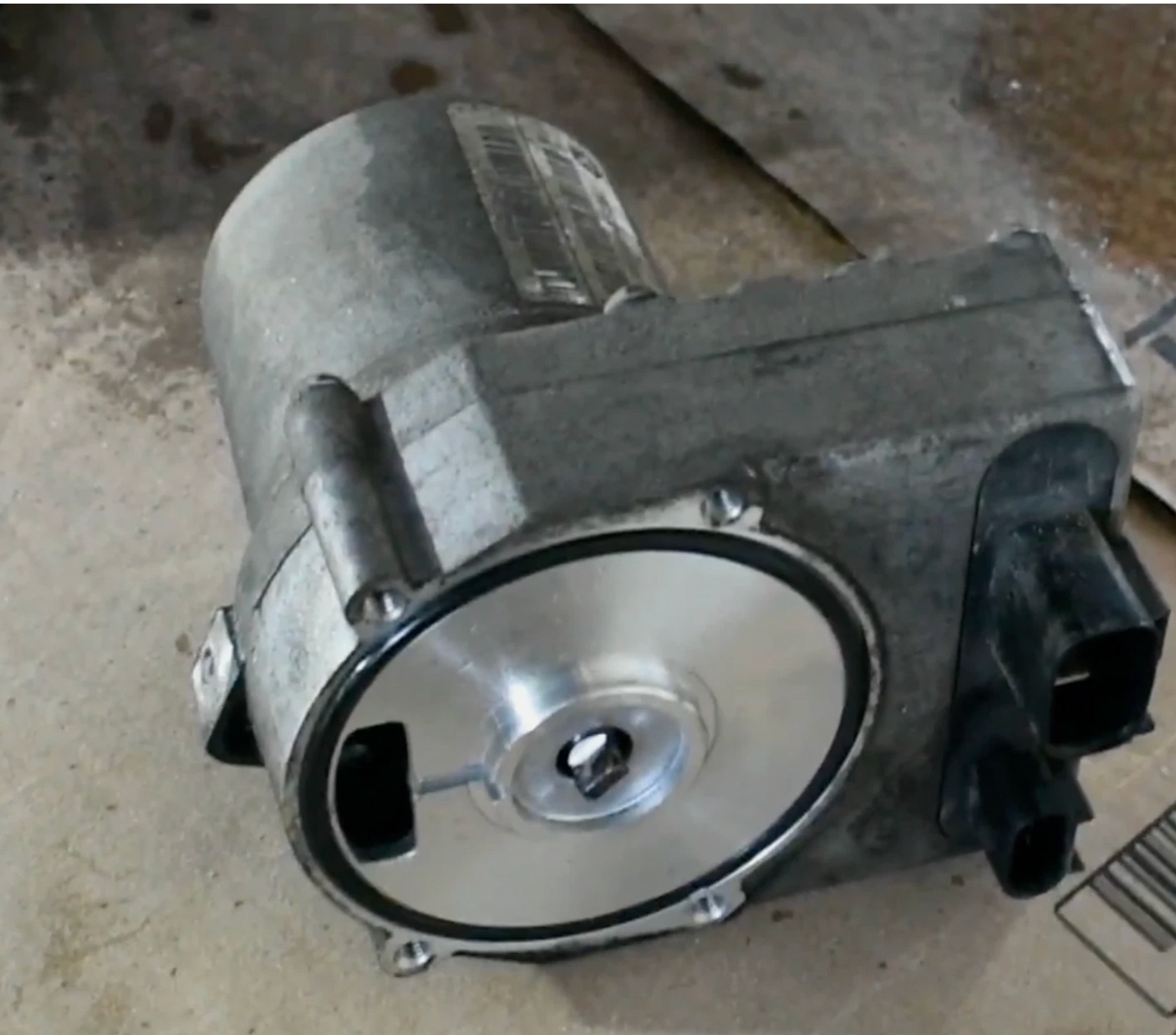

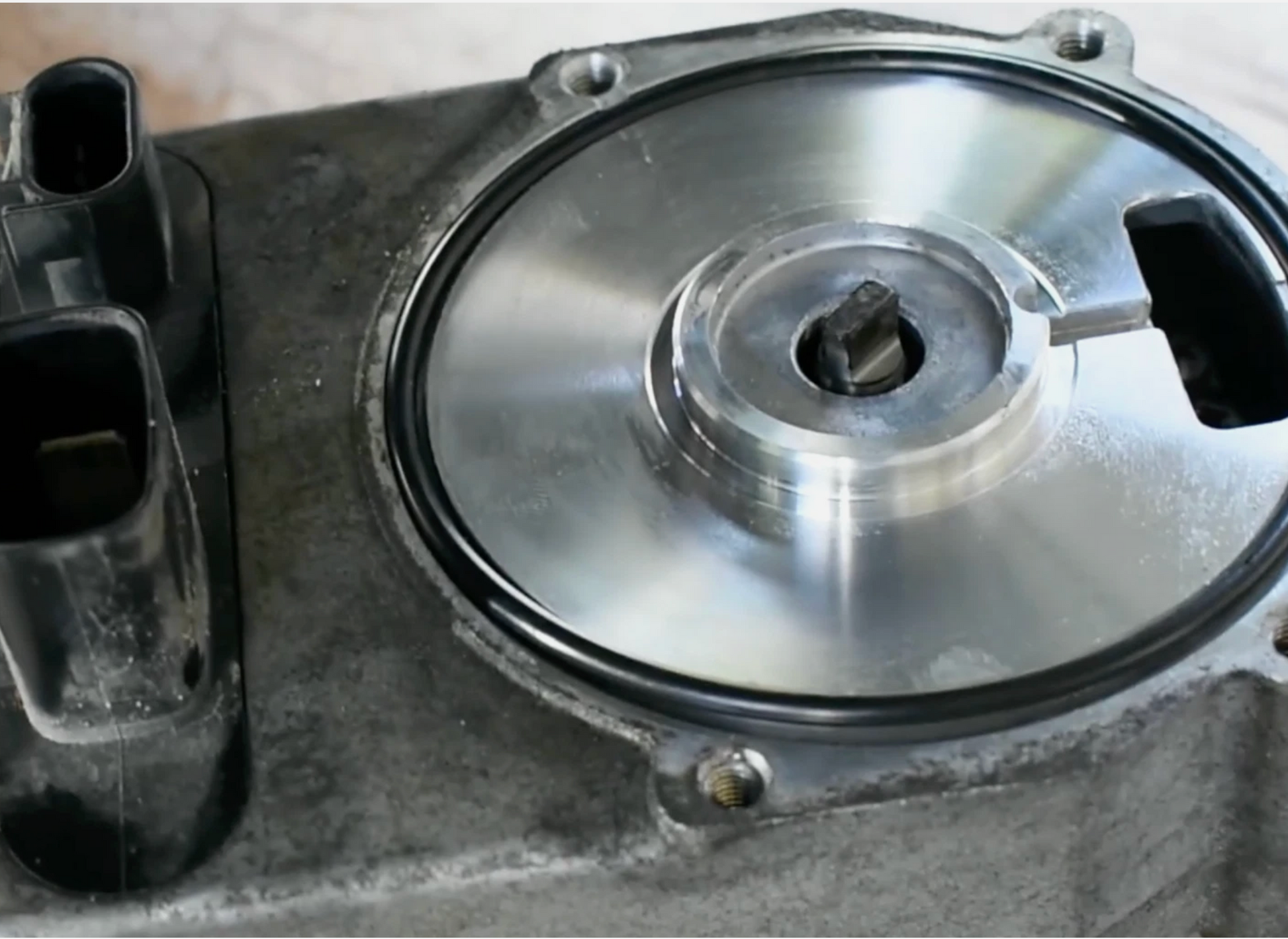

Housing perimeter O-ring

• Large O-ring between pump head and motor.
• Remove with plastic pick.
• Clean groove thoroughly.
• Install new O-ring lightly coated with PS fluid.

 Rear cover O-ring

• Located in groove of rear plate.
• Replace and lubricate before reinstalling.

Step 6 – Reassemble Pump Cartridge

1. Coat all internal parts lightly with clean power steering fluid.
2. Install:
• Cam ring
• Rotor
• Vanes (rounded edge outward)
3. Reinstall thrust plates.
4. Install rear cover with new O-ring.
5. Torque bolts evenly in criss-cross pattern.

(Typical small pump cover bolts: ~80–120 in-lb. Verify for your application.)

Step 7 – Rejoin Pump to Electric Motor

1. Install new large perimeter O-ring.
2. Align dowel pins.
3. Carefully mate hydraulic section to motor.
4. Install housing bolts.
5. Torque evenly.

Step 8 – Reinstall in Vehicle

1. Mount pump.
2. Reconnect pressure and return lines.
3. Reconnect electrical connector.
4. Reinstall removed components.

Step 9 – Refill & Bleed System

1. Fill reservoir with correct fluid.
2. Leave cap off.
3. Turn steering wheel slowly lock-to-lock (engine OFF) 10–15 times.
4. Start engine.
5. Continue slow lock-to-lock cycles.
6. Check for:
• Foaming
• Whining
• Leaks

Top off fluid.

 Pro Tip

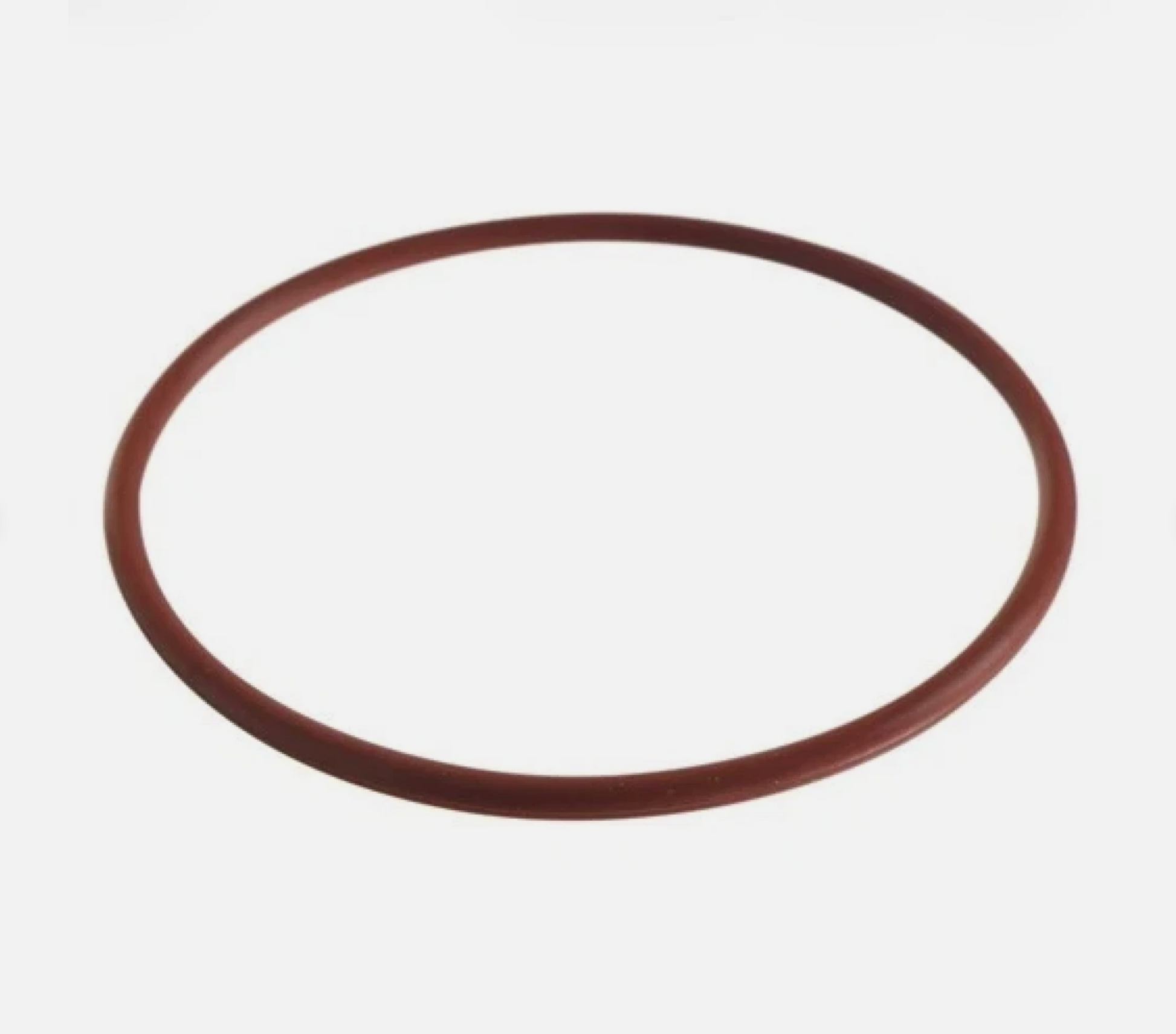

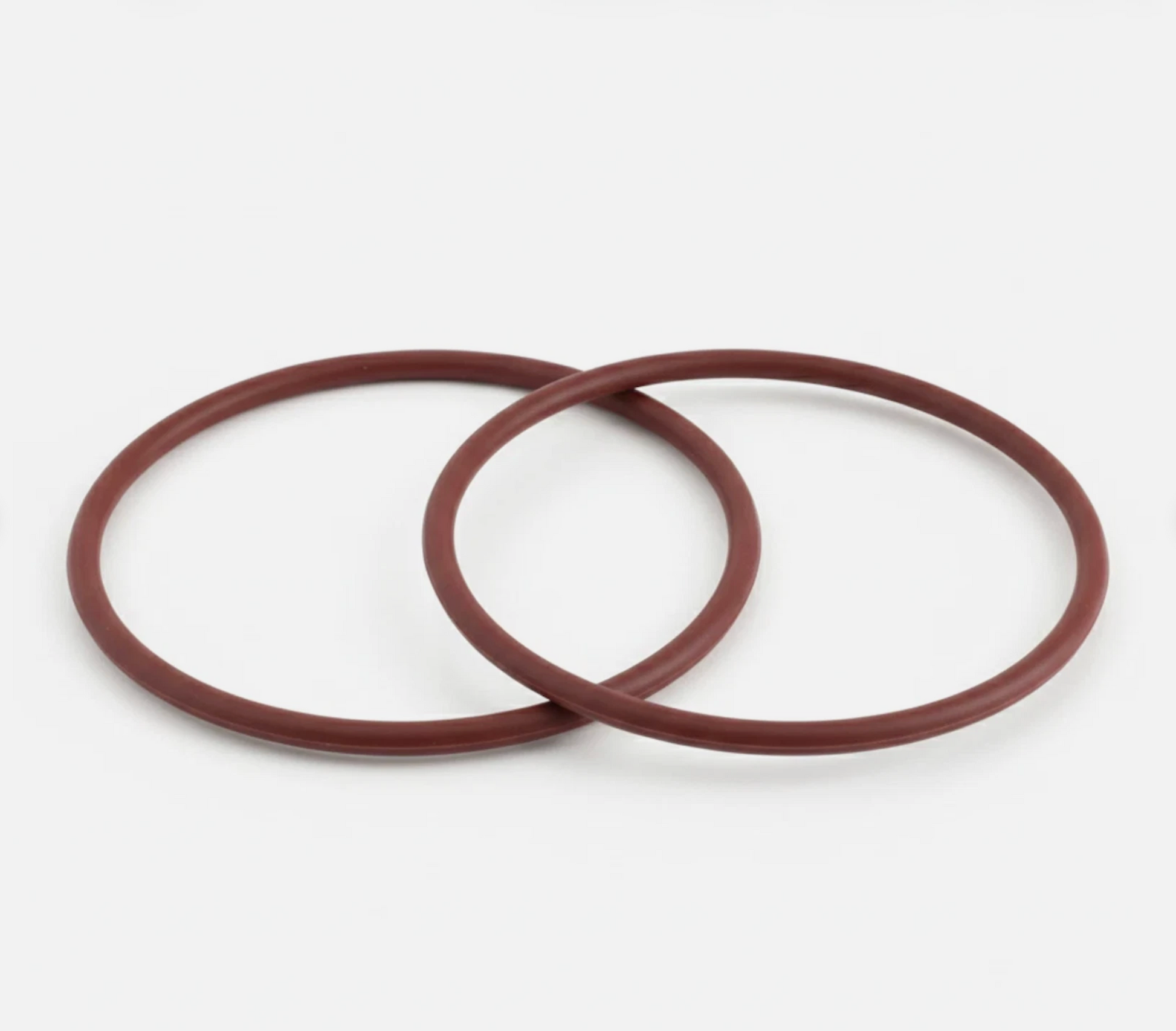

Use our Viton (FKM) O-rings rated for hydraulic fluid and temperature. Cheap rubber rings will swell and fail.
