VVT-i Cam Gear Rebuild O-ring Lexus Toyota 1JZ 2JZ IS300, GS300, SC300 VVTI

Replacing the Variable Valve Timing with intelligence (VVT-i) cam gear O-ring on a Toyota or Lexus vehicle is a technical task that requires precision and mechanical knowledge. This guide provides a general overview of the process based on available information for models like the Lexus GS300, IS300, SC300, and engines such as the 1JZ, 2JZ, 1UZ, or 3UZ. Always consult a vehicle-specific service manual for exact procedures, torque specs, and safety precautions. If you’re not experienced with engine work, consider professional assistance.

Tools and Parts Needed

• Parts:

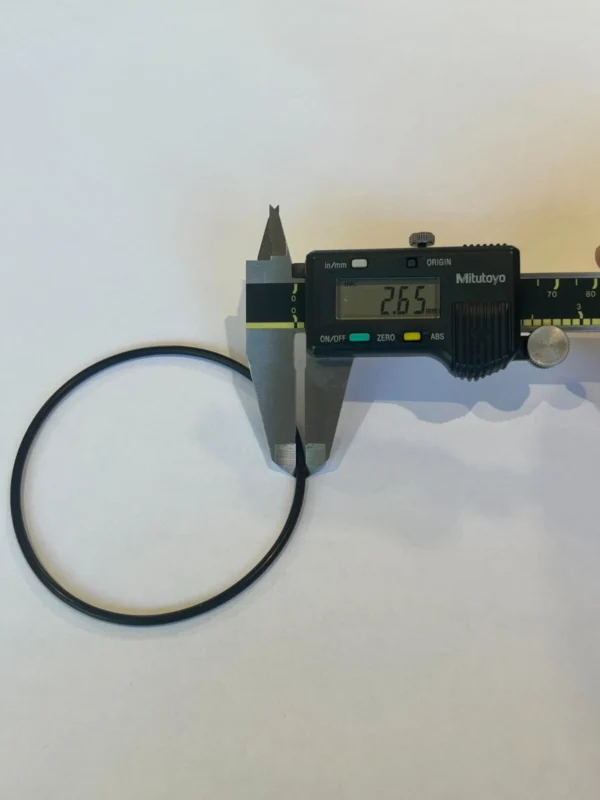

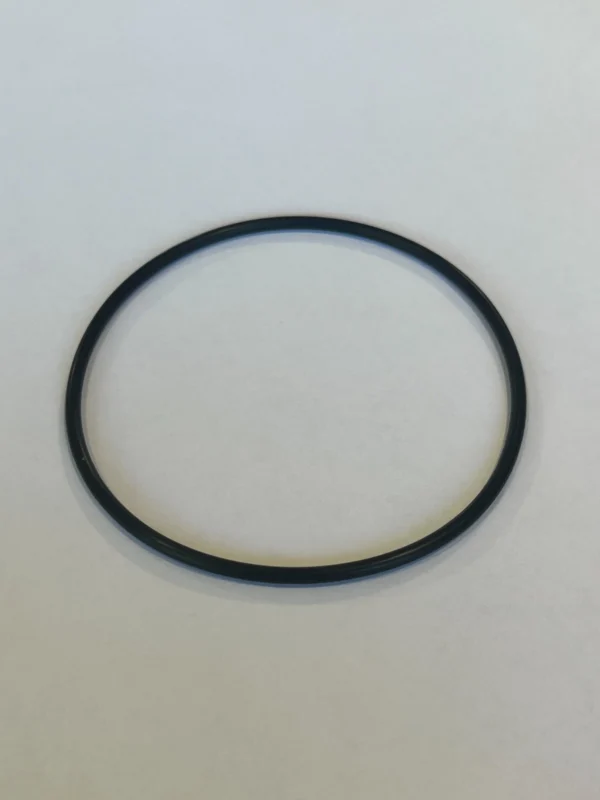

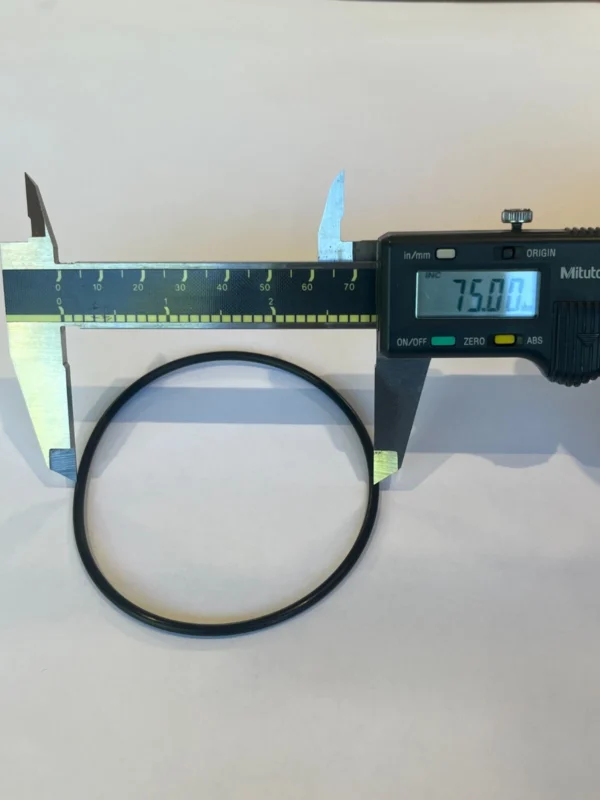

  • VVT-i cam gear O-ring
  • Engine assembly lube (e.g., Permatex 81950 Ultra Slick).
• Tools:
  • Socket set (including 10mm, 12mm, 14mm, and others per manual).
  • Torque wrench (for precise bolt tightening).
  • Flathead and Phillips screwdrivers.
  • Vice grips or pentagon bolt tool (for VVT gear bolts).
  • Chain tensioner tool or bungee cord (to maintain timing chain tension).
  • Clean rags, degreaser, and oil for lubrication.
  • Air compressor (optional, for unlocking the VVT gear).
• Safety:
  • Work gloves, safety glasses.
  • Ensure the engine is cool and the battery is disconnected.

Step-by-Step Process

1. Preparation:
   • Park and Secure Vehicle: Place the vehicle on a flat surface, engage the parking brake, and disconnect the negative battery terminal.
   • Access the Engine: Remove any plastic covers or components obstructing access to the timing cover and valve cover (e.g., air intake, throttle body cover).
2. Remove the Valve Cover:
   • Unbolt the valve cover (typically 10mm or 12mm bolts) and carefully lift it off to expose the camshafts.
   • Clean the valve cover gasket surface to prevent debris from entering the engine.
   • Note: Some procedures suggest replacing the valve cover gasket at this stage.
3. Secure the Timing Chain:
   • To prevent the timing chain from slipping, use a bungee cord or a specialized tool to maintain tension on the chain. This avoids the need to remove the timing cover, which is a more complex job.
   • Mark the chain and cam gear with a paint marker to ensure proper reassembly and timing alignment.
4. Access the VVT-i Cam Gear:

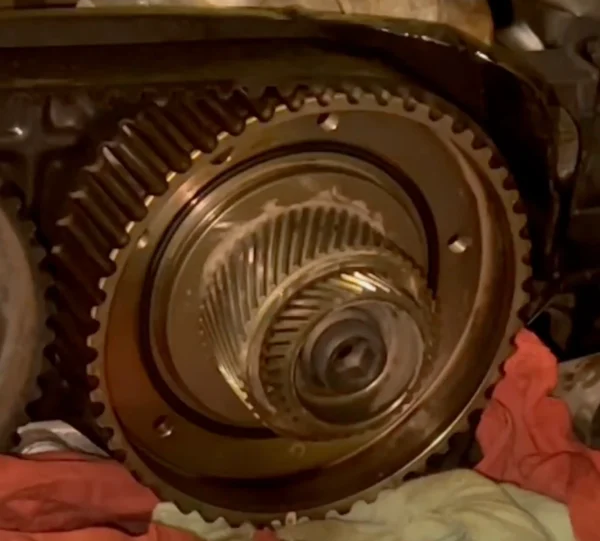

   • Locate the VVT-i cam gear (typically on the intake camshaft). It’s the sprocket with the VVT actuator.
   • If the gear is locked, you may need to unlock it. One method involves applying air pressure to specific ports on the gear (e.g., at the 2 o’clock position channel) using an air compressor. This rotates the gear to the unlocked position, confirmed by visible dot misalignment.
   • Alternatively, follow your service manual to release the lock pin, which may involve oil pressure or manual rotation.
5. Remove the VVT-i Cam Gear:
   • Remove the central bolt holding the cam gear to the camshaft (often a 14mm or larger bolt). Use a wrench to hold the camshaft to prevent rotation.
   • Carefully slide the gear off the camshaft, keeping the timing chain in place. Note the gear’s orientation for reassembly.
   • Warning: Avoid excessive force to prevent bending valves or misaligning the timing chain.
6. Replace the O-ring:
   • Disassemble the VVT-i gear by removing the four pentagon bolts (use vice grips or a specialized tool).

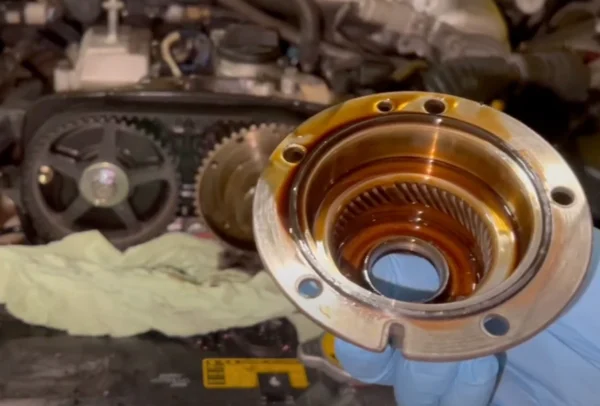

   • Carefully separate the gear components to access the old O-ring. Note the oil pockets and internal sliders with springs, as these must be kept clean.
   • Remove the old O-ring and clean the gear thoroughly with degreaser to remove oil and debris.
   • Install the new Viton O-ring. You may need to stretch it slightly to fit properly—apply a small amount of engine oil to ease installation and ensure a tight seal.
   • Reassemble the gear, ensuring all components (e.g., sliders, springs) are correctly positioned.
7. Reinstall the Cam Gear:
   • Slide the rebuilt VVT-i gear back onto the camshaft, aligning it with the timing chain marks made earlier.
   • Torque the central bolt to the manufacturer’s specification (e.g., 63 ft-lb for some models).
   • Ensure the gear is locked in place (if required) by rotating the camshaft carefully to engage the lock pin.
8. Check Timing and Tension:
   • Verify that the timing chain is properly aligned with the cam gear and crankshaft marks.
   • Release the bungee cord or tensioner tool slowly to restore chain tension. If the chain tensioner extends unexpectedly, secure it with a wire or tool to prevent issues.
   • Rotate the crankshaft manually (using a socket on the crank pulley) two full turns to confirm the timing marks align and there’s no resistance (indicating no valve interference).
9. Reassemble and Test:
   • Reinstall the valve cover with a new gasket (if replaced) and torque the bolts to spec (typically 5-7 ft-lb).
   • Reattach all removed components (e.g., air intake, battery terminal).
   • Start the engine and listen for abnormal noises like rattling, which could indicate a timing issue or VVT gear malfunction.
   • Check for oil leaks around the cam gear area after running the engine for a few minutes. Customers report no leaks after proper installation.
   • If a check engine light appears (e.g., P1349 code), double-check the VVT solenoid and timing alignment.

Tips and Warnings

• Stretch the O-ring Carefully: The Viton O-ring may require slight stretching to fit. Use oil to lubricate and work quickly to avoid tearing.
• Cleanliness is Critical: Keep all components free of dirt and debris to prevent engine damage.
• Timing Precision: Misaligning the timing chain can cause catastrophic engine damage. Double-check all marks and alignments.
• Non-Serviceable Part: Toyota considers the VVT-i gear a non-serviceable component, so replacing the O-ring is a cost-effective alternative to a new gear ($200-$400).
• Rattle Issues: If replacing the O-ring doesn’t resolve a cold-start rattle, the issue may be internal to the VVT gear or related to oil pressure. Consider a full gear replacement or further diagnosis.

Additional Notes

• Cost Savings: Customers report saving significant money by rebuilding the VVT-i gear with an O-ring ($10-$15) instead of replacing the entire gear.
• Fitment: Confirm the O-ring kit matches your engine. Common fitments include 1JZ-GE/GTE VVTi, 2JZ-GE/GTE VVTi, 1UZ-FE VVTi, and 3UZ-FE VVTi.
• Time Estimate: The job may take 3-5 hours for a first attempt, less with experience.
