It’s always recommended to replace these seals whenever the Haldex Pump is removed.
We recommend changing the Haldex Fluids every 20,000 miles for the Gen 5 haldex. With this Service its recommended to remove the pump and clean the filter that is on the pump from any metal shavings. Failure to do so will accumulate clutch particles and put extra wear on the pump motor causing it to fail prematurely. That would require a new pump motors that run around $250 and need to be reset with AUDI software. It is cheeper to just change the fluids on time.

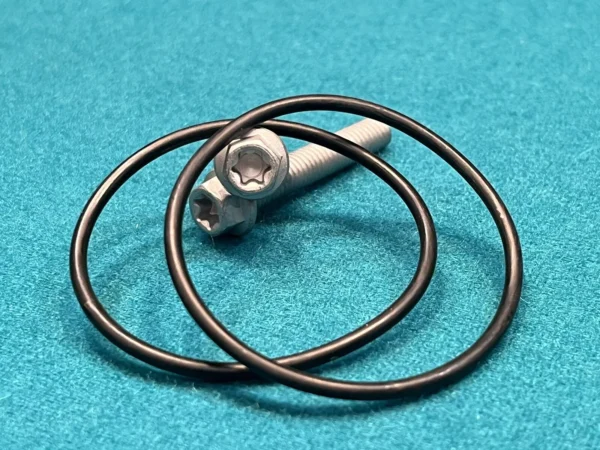

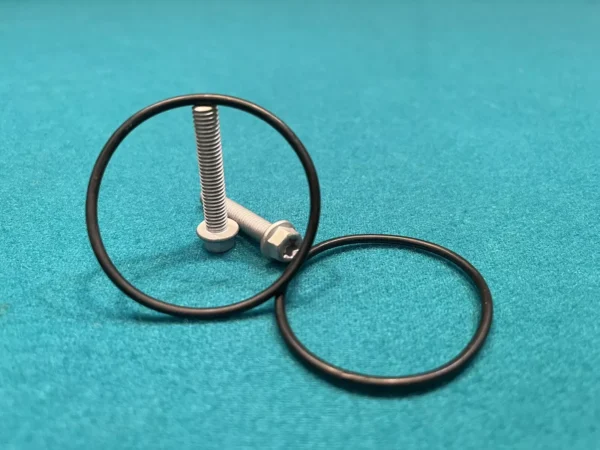

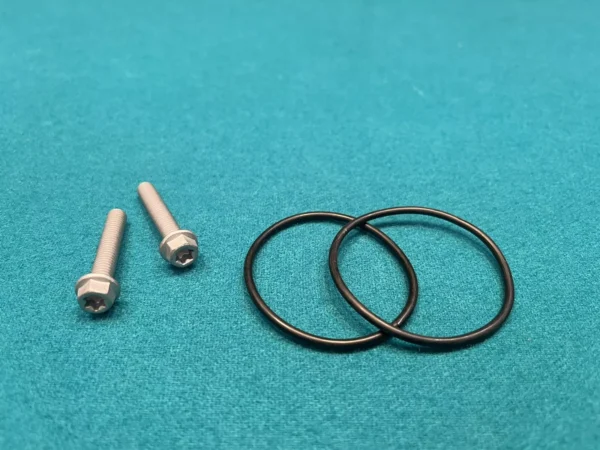

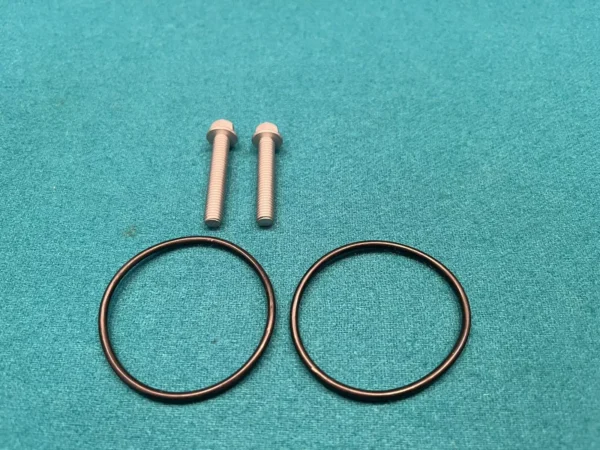

The two seals are not the same size!

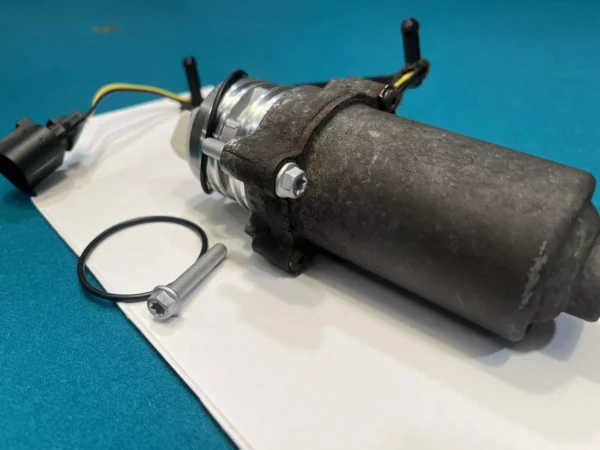

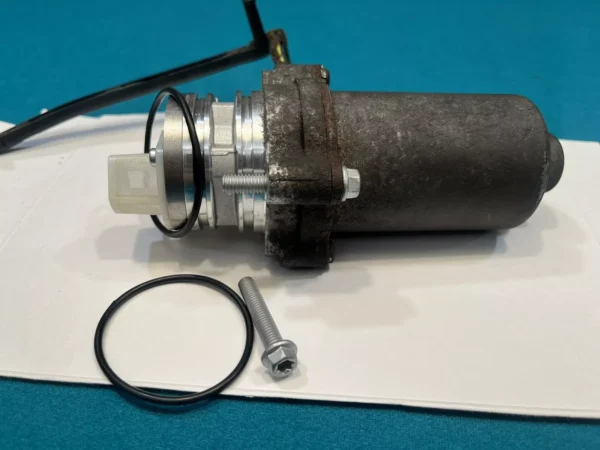

Make sure the smaller seal is positioned closest to the strainer pickup, while the larger seal is fitted nearest to the flange and motor body.

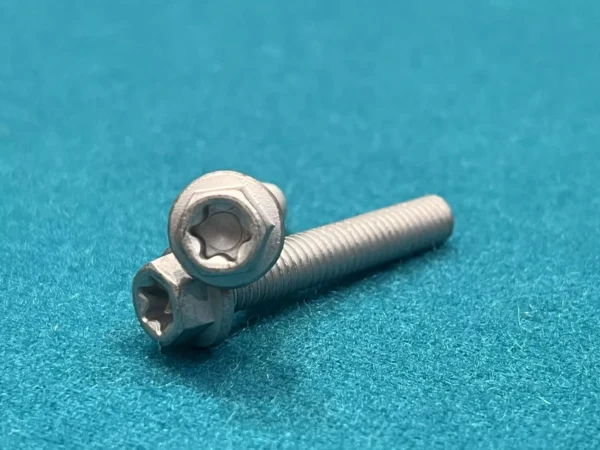

Bolts are m6 with t30 inner and 8mm head (NOT A 10MM HEAD ) but works perfectly
This kit will work for any Gen 5 haldex that can be found in the following cars
Volvo S60 XC (-2018)
Volvo S60 V60 (2011-2018)
Volvo S60 V60 (2011-2018)
Volvo S80 (2011 onwards)
Volvo S90 2017 Onwards
Volvo V40 Cross Country
Volvo V60 XC 2016 onwards
Volvo V70, XC70 2015 onwards
Volvo XC40 2018 onwards
Volvo XC60 2016 onwards
Volvo XC90 2016 onwards
Works with the following Part numbers This is the seals for these motors
0CQ598549
3310 8663457
LR051321
31367750
31367749
