2003 – 2010 6.0L Powerstroke Diesel High Pressure Oil Rail Ball Tube 8 O-rings

Replacing the high-pressure oil rail ball tube O-rings on a 2003-2010 Ford 6.0L Powerstroke Diesel engine is a detailed process that addresses common high-pressure oil system leaks, which can cause hard starts, no starts, or injector issues. Below is a concise step-by-step guide based on reliable sources and standard repair practices. This repair requires a special ball tube removal tool and assumes moderate mechanical skill. Always consult the Ford 6.0L Powerstroke Service Manual for specific torque values and procedures.

Tools and Materials Needed:

• Special ball tube removal socket (e.g., HHC Diesel F60L-BALLSKT or equivalent, 1/2″ drive)

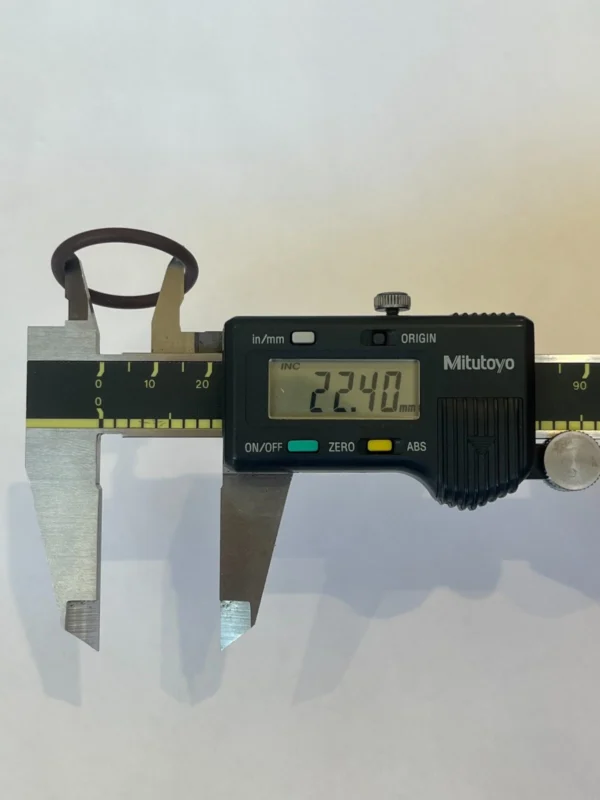

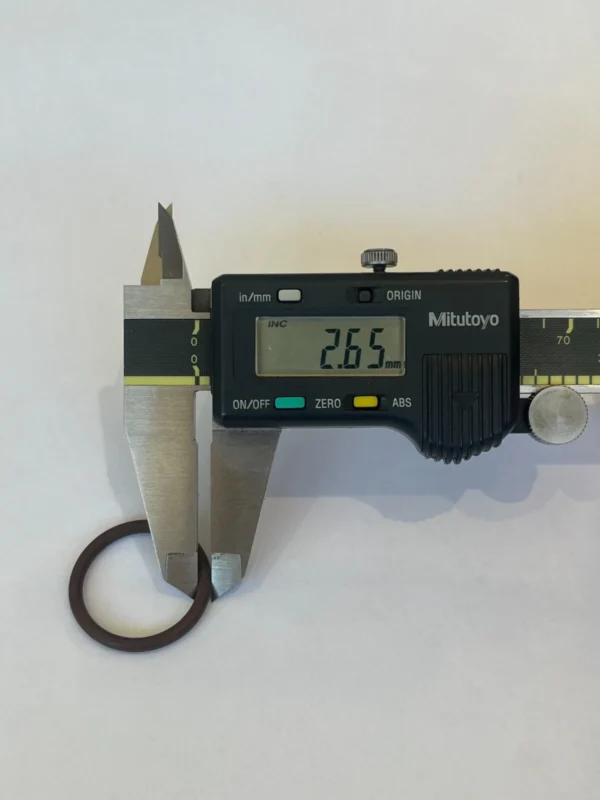

• High-pressure oil rail ball tube O-ring kit (e.g., 8 Viton O-rings from HHC Diesel, Alliant Power AP0070, or TrackTech)
• Optional: New ball tubes (if existing ones are damaged or etched)
• Torque wrench (for 100 ft-lbs and 96 in-lbs)
• Clean engine oil (for lubrication)
• Carburetor cleaner and compressed air
• Socket set, wrenches, and screwdrivers
• Shop air and scan tool (for leak testing)
• Clean workspace (e.g., cardboard to organize parts)
• Optional: Injector seal kits, standpipe/dummy plug kit (e.g., 6E7Z-9A332-B)

Step-by-Step Instructions:

• Preparation:
  • Disconnect the battery (negative terminal first).
  • Drain coolant from the degas bottle and remove the air filter assembly, intercooler tubes, FICM (Fuel Injection Control Module), and valve covers to access the high-pressure oil rails.
  • Drain as much oil as possible from the oil rail to minimize spillage.
• Remove the High-Pressure Oil Rail:
  • Follow the service manual to remove the oil rail (early 2003-2004.25 straight rail or later 2004.5-2010 wavy rail).
  • Disconnect the standpipe (2004.5+) or braided oil line (2003-early 2004). Remove oil rail bolts and carefully lift the rail off the injectors. Secure the rail in a vice on a sturdy section (not a thin flange).
• Remove the Ball Tubes and O-rings:
  • Use the special ball tube removal socket (1/2″ drive, low-profile, hollow) to loosen the hex compression ring on each ball tube (torqued to ~100 ft-lbs). Do not attempt removal without this tool to avoid damaging the rail or tubes.

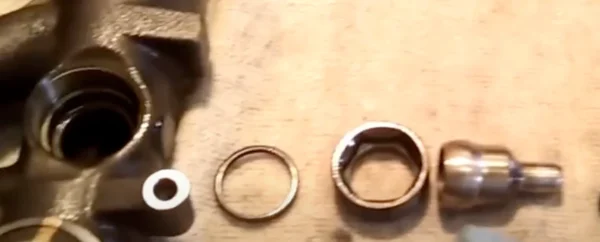

  • Remove the ball tube and old O-ring. Inspect the ball tube’s nipple (where it contacts the injector) for etching or wear. Replace if damaged, as imperfections can cause repeat leaks.
• Clean and Prepare:
  • Clean the ball tube pocket and O-ring seat in the oil rail with carburetor cleaner and compressed air. Ensure no debris or imperfections remain, as these can compromise the seal.
• Install New O-rings and Ball Tubes:
  • Lubricate the new Viton O-ring with clean engine oil and install it into the O-ring seat in the oil rail.
  • Insert the ball tube (new or reused if undamaged) and hand-tighten the retaining nut.
  • Use the removal socket as a centering guide to align the ball tube, then torque the retaining nut to 100 ft-lbs.
  • Repeat for all eight ball tubes (replace all if one is leaking to prevent future failures).
• Reinstall the Oil Rail:
  • Reinstall the oil rail, ensuring it seats evenly on all injectors. Torque oil rail bolts to 96 in-lbs (inch-pounds, not ft-lbs).
  • Reconnect the standpipe or braided oil line.
• Reassemble the Engine:
  • Reinstall valve covers (reuse gaskets if undamaged), intercooler tubes, FICM, air filter assembly, and degas bottle. Refill coolant.
  • Reconnect the battery.
• Test for Leaks:
  • Remove the ICP (Injection Control Pressure) sensor and pressurize the system with shop air (command the IPR valve closed using a scan tool). Check for leaks at the ball tubes and injectors.
  • Start the engine and monitor for proper operation. Expect extended cranking until air is purged from the oil system.
• Optional Maintenance:
  • Replace injector O-rings and standpipes/dummy plugs if servicing the oil rail, as they are subject to similar wear.
  • Replace fuel filters, engine oil, and oil filter to prevent contamination.

Tips and Warnings:

• Use high-quality O-rings: Viton O-rings are critical for high-pressure (3,500+ PSI) and high-temperature durability.
• Inspect ball tubes: If etched or worn, replace them to avoid repeat failures. OEM or stainless steel (e.g., Mishimoto, PPE) are preferred over soft steel aftermarket tubes.
• Special tool required: The ball tube removal socket is mandatory; no workarounds exist. Ensure it’s high-quality (e.g., HHC Diesel, not eBay generics).
• Leak diagnosis: Eroded injector O-rings (top eroded, bottom intact) indicate a ball tube O-ring leak.
• Torque carefully: Overtightening can damage components; use a torque wrench for precision.

Troubleshooting:

• Persistent leaks: Recheck O-ring seating, ball tube condition, and torque values. Ensure the rail seat is clean.
• Injector issues: Replace injector O-rings if eroded, as ball tube leaks can damage them.
• Poor performance: Verify no air leaks in the system and recheck torque on all bolts.

For visual guidance, watch the YouTube video “Ford 6.0L Power Stroke Ball Tube & O-ring and Installation” by HHC Diesel or similar tutorials. If you encounter issues or need part sourcing, let me know, and I can provide further assistance or search for additional resources.
